Container Specification

GENERAL PURPOSE 20'x8'x8'6''

GENERAL PURPOSE 20'x8'x8'6''

INTERNAL (MM)

LENGTH

5,898

WIDTH

2,352

HEIGHT

2,393

DOOR OPENING WIDTH

2,343

DOOR OPENING HEIGHT

2,280

CUBIC CAPACITY (CU.M)

33.2

WEIGHT & PAYLOAD (KG)

TARE WEIGHT

2,185

MAXIMUM PAYLOAD

28,295

MAX GROSS WEIGHT

30,480

VENTILATION

NO.OF VENTILATORS

2

The above are general specifications for customers' reference only. Before picking up requested containers, please contact your local PERMA office in order to confirm required specification. Please always refer to the container right door for actual specifications.

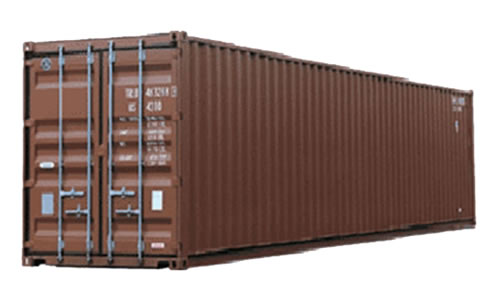

HIGH CUBE 40'x8'x9'6''

HIGH CUBE 40'x8'x9'6''

INTERNAL (MM)

LENGTH

12,032

WIDTH

2,352

HEIGHT

2,698

DOOR OPENING WIDTH

2,340

DOOR OPENING HEIGHT

2,585

CUBIC CAPACITY (CU.M)

76.4

WEIGHT & PAYLOAD (KG)

TARE WEIGHT

3,890

MAXIMUM PAYLOAD

26,590

MAX GROSS WEIGHT

30,480

VENTILATION

NO.OF VENTILATORS

2

The above are general specifications for customers' reference only. Before picking up requested containers, please contact your local PERMA office in order to confirm required specification. Please always refer to the container right door for actual specifications.

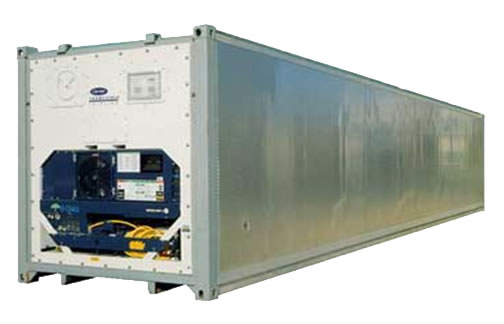

REEFER HIGH CUBE 40'x8'x9'6''

REEFER HIGH CUBE 40'x8'x9'6''

INTERNAL (MM)

LENGTH

11,586

WIDTH

2,290

HEIGHT

2,545

DOOR OPENING WIDTH

2,290

DOOR OPENING HEIGHT

2,557

CUBIC CAPACITY BELOW LOAD LINE (CU.M)

64.8

WEIGHT & PAYLOAD (KG)

TARE WEIGHT (Including Machinery)

4,590

MAXIMUM PAYLOAD

29,410

MAX GROSS WEIGHT

34,000

COOLING

TEMPERATURE RANGE

-22 °C to +22 °C

The above are general specifications for customers' reference only. Before picking up requested containers, please contact your local PERMA office in order to confirm required specification. Please always refer to the container right door for actual specifications.

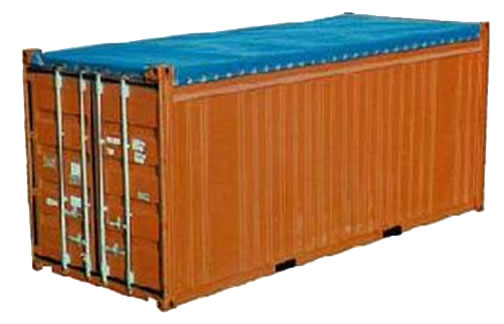

OPEN TOP 20'x8'x8'6''

OPEN TOP 20'x8'x8'6''

INTERNAL (MM)

LENGTH

5,902

WIDTH

2,352

HEIGHT

2,348

DOOR OPENING WIDTH

2,340

DOOR OPENING HEIGHT

2,280

CUBIC CAPACITY (CU.M)

32.5

WEIGHT & PAYLOAD (KG)

TARE WEIGHT

2,300

MAXIMUM PAYLOAD

28,180

MAX GROSS WEIGHT

30,480

The above are general specifications for customers' reference only. Before picking up requested containers, please contact your local PERMA office in order to confirm required specification. Please always refer to the container right door for actual specifications.

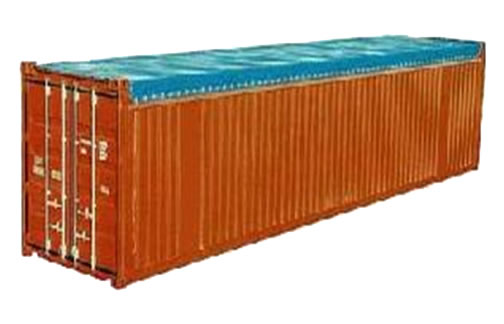

OPEN TOP 40'x8'x8'6''

OPEN TOP 40'x8'x8'6''

INTERNAL (MM)

LENGTH

12,032

WIDTH

2,352

HEIGHT

2,348

DOOR OPENING WIDTH

2,340

DOOR OPENING HEIGHT

2,280

CUBIC CAPACITY (CU.M)

65.9

WEIGHT & PAYLOAD (KG)

TARE WEIGHT

3,800

MAXIMUM PAYLOAD

26,680

MAX GROSS WEIGHT

30,480

The above are general specifications for customers' reference only. Before picking up requested containers, please contact your local PERMA office in order to confirm required specification. Please always refer to the container right door for actual specifications.

FLAT RACK 20'x8'x8'6''

FLAT RACK 20'x8'x8'6''

INTERNAL (MM)

LENGTH (Between end panels)

6,038

LENGTH (Between corner posts)

5,612

LENGTH (Between hinges at floor level)

5,552

WIDTH (Over bottom side rail)

2,210

WIDTH (Between corner posts)

2,227

HEIGHT (Side rail adjacent to post to top casting)

2213

WEIGHT & PAYLOAD (KG)

TARE WEIGHT

2,750

MAXIMUM PAYLOAD

31,250

MAX GROSS WEIGHT

34,000

The above are general specifications for customers' reference only. Before picking up requested containers, please contact your local PERMA office in order to confirm required specification. Please always refer to the container right door for actual specifications.

FLAT RACK 40'x8'x8'6''

FLAT RACK 40'x8'x8'6''

INTERNAL (MM)

LENGTH (Between end panels)

12,172

LENGTH (Between corner posts)

11,652

LENGTH (Between hinges at floor level)

11,630

WIDTH (Over bottom side rail)

2,374

WIDTH (Between corner posts)

2,212

HEIGHT (Side rail adjacent to post to top casting)

1959

WEIGHT & PAYLOAD (KG)

TARE WEIGHT

5,100

MAXIMUM PAYLOAD

44,900

MAX GROSS WEIGHT

50,000

The above are general specifications for customers' reference only. Before picking up requested containers, please contact your local PERMA office in order to confirm required specification. Please always refer to the container right door for actual specifications



|
|
